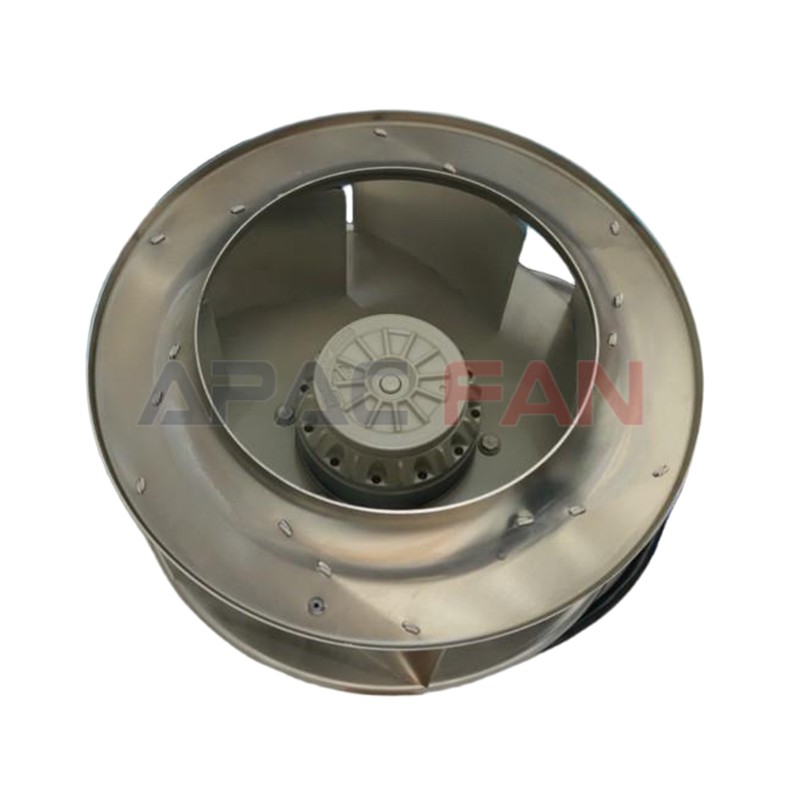

RH25M-2DK.1E.2R 170155 ZIEHL-ABEGG Centrifugal Fan

Brand：

ZIEHL-ABEGG

Category：

Centrifugal Fan

Description：

Brand：ZIEHL-ABEGG
Part No：RH25M-2DK.1E.2R 170155
Fan Type：Centrifugal Fan
Rated Voltage(V)：3~400
Size(mm)：250
Max.Air Flow(m³/h)：1500
Max.Pressure(Pa)：550
Input Power(W)：250
Speed(rpm)：2820
Noise(db)：50

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

RH25M-2DK.1E.2R 170155

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

250

Max.Air Flow(m³/h)：

1500

Max.Pressure(Pa)：

550

Input Power(W)：

250

Speed(rpm)：

2820

Noise(db)：

50

Description

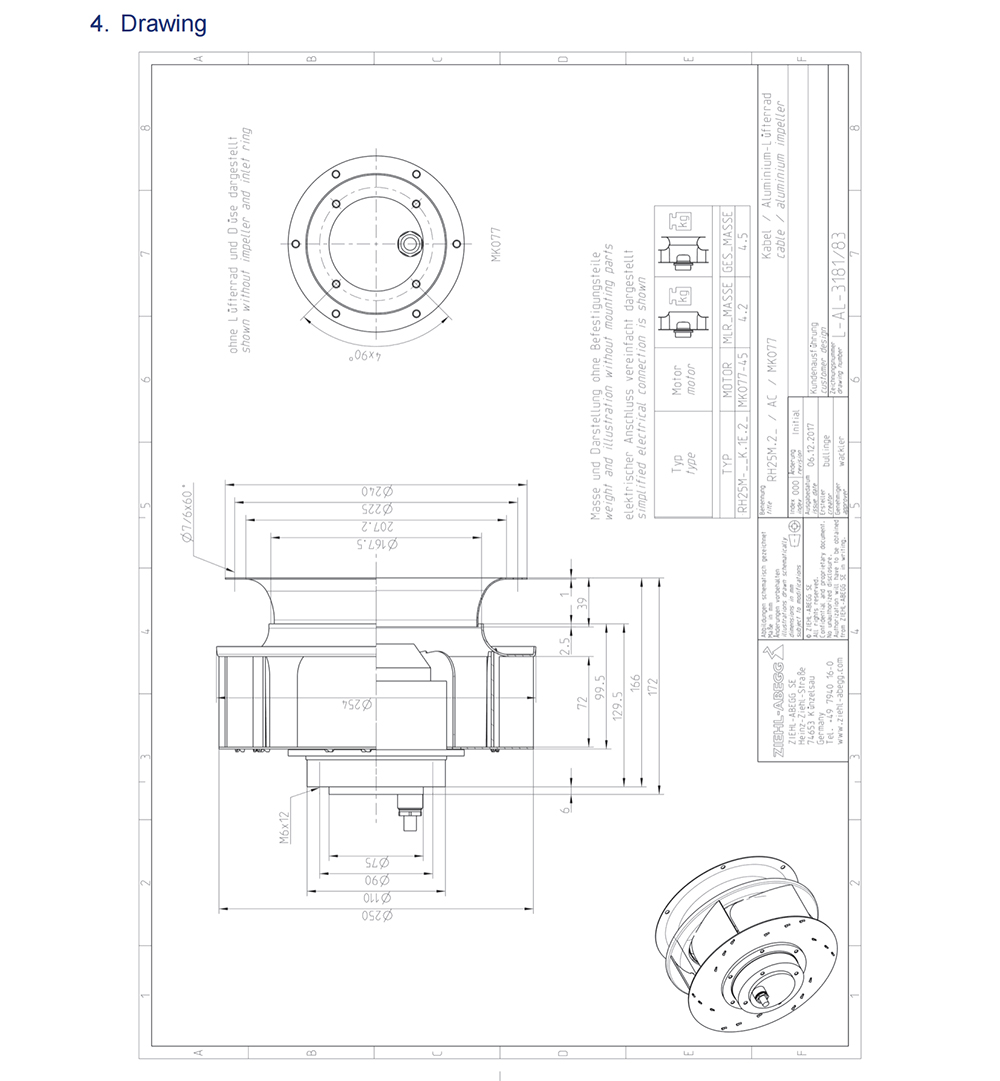

RH25M-2DK.1E.2R 170155 Ziehl-abegg Specification drawing：
